LED Circline; 16 Watt; T9; 6500K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass
LED Circline; 16 Watt; T9; 6500K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass
Regular price
Clearance Price $6.73
Regular price
Distributor Net :
$11.21
Sale price
Clearance Price : $6.73
Unit price
/
per
Total Available Inventory: 109
Couldn't load pickup availability
SKU: S16505
Product Description

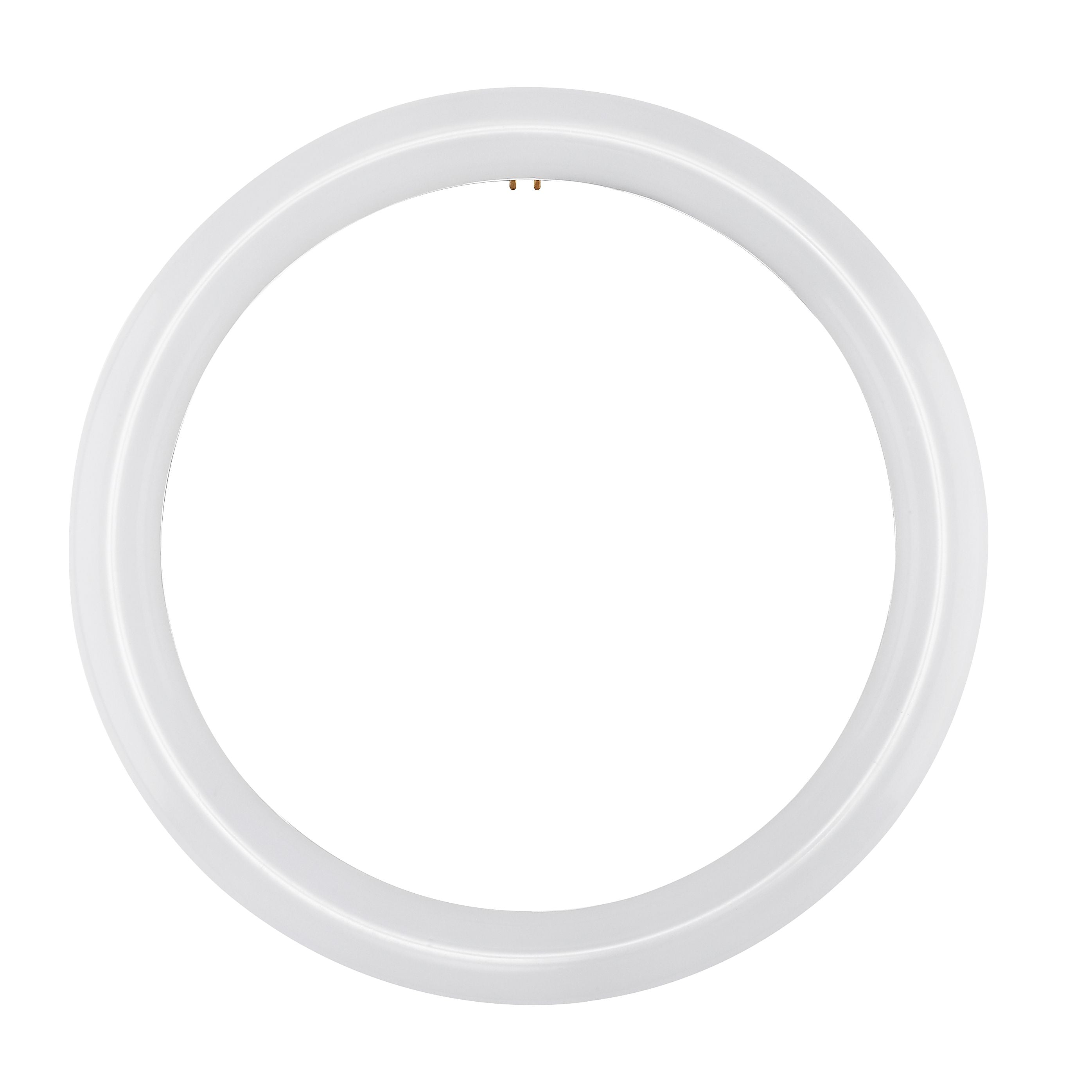

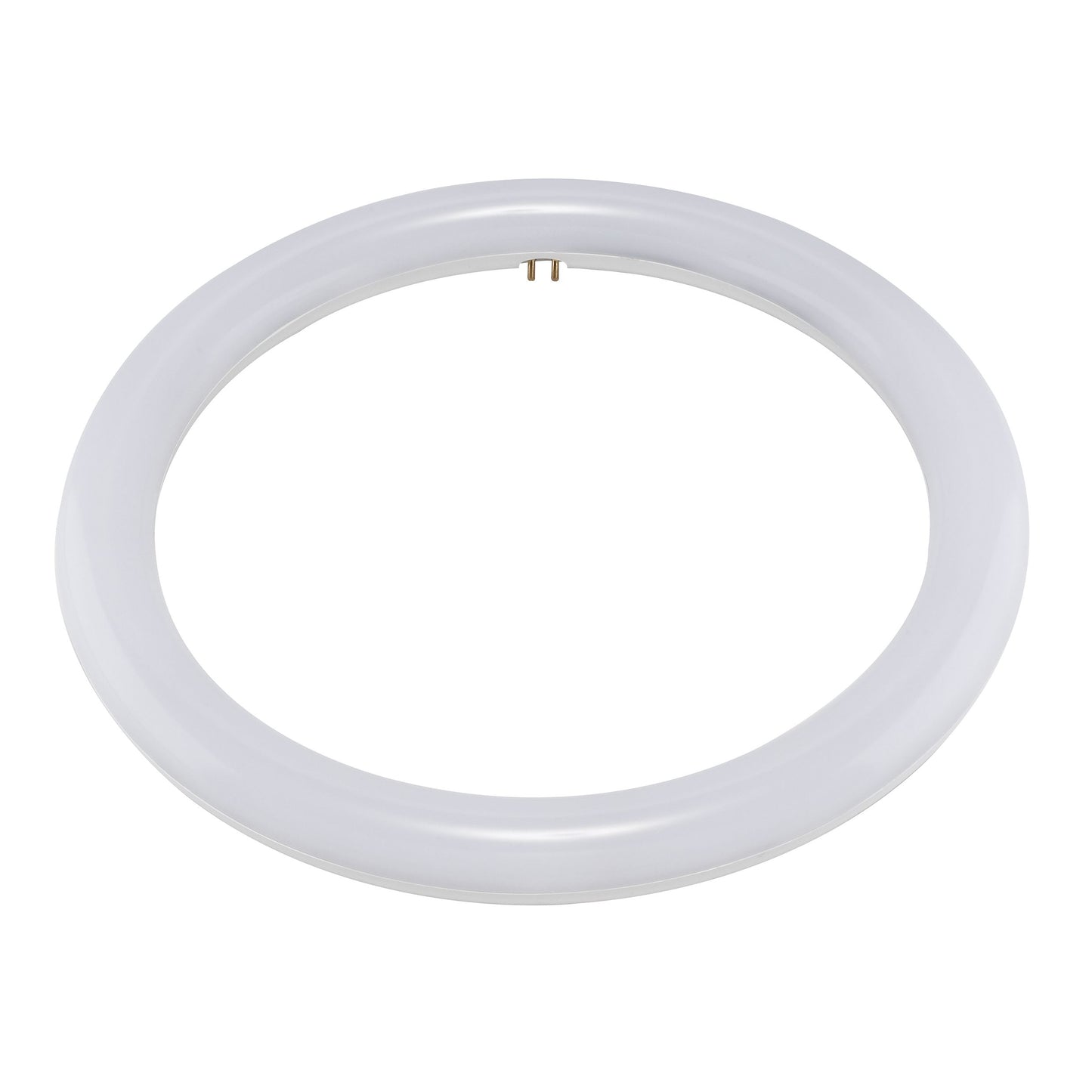

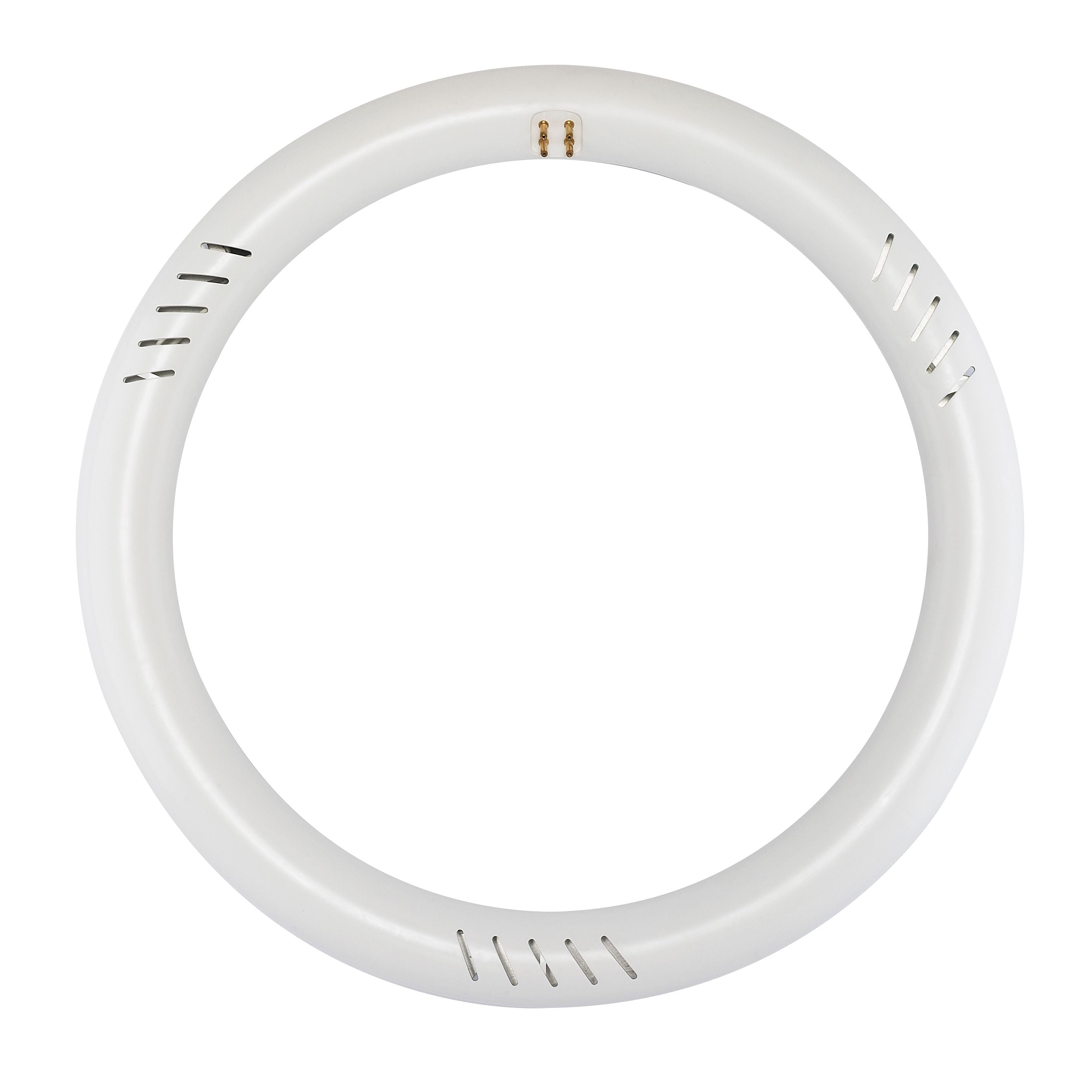

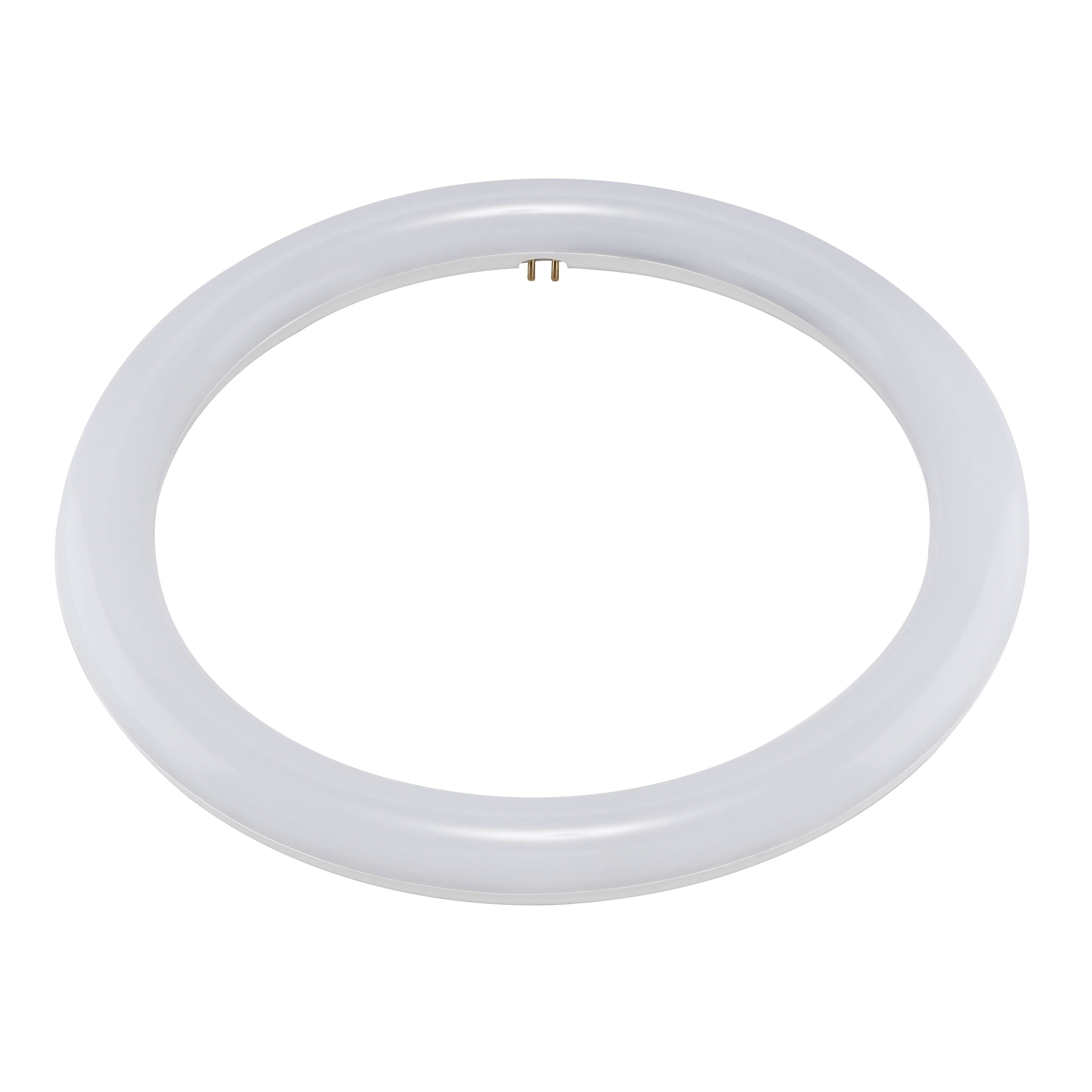

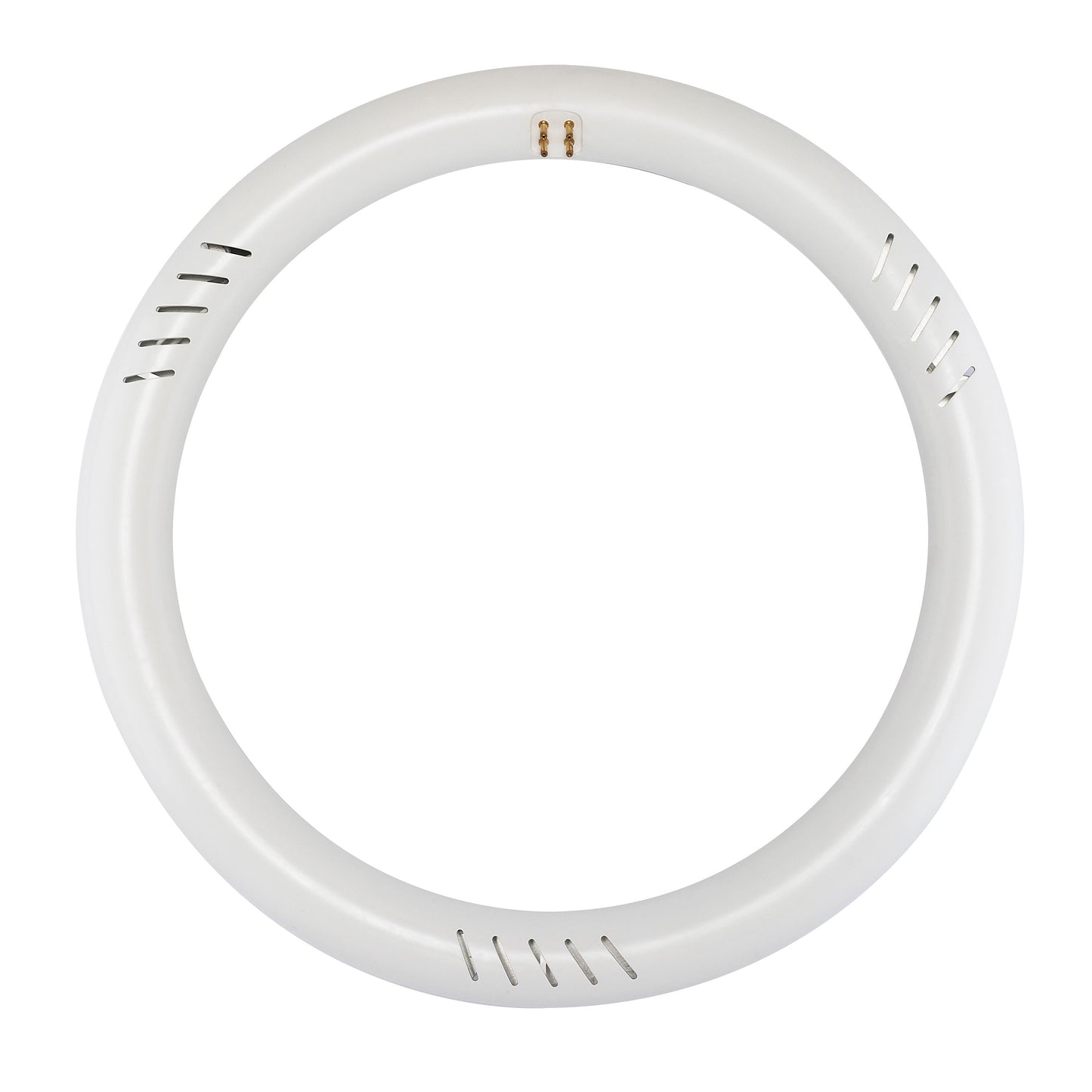

Satco's S16505 T9 16 watt LED circline Type B ballast bypass lamp provides even, energy efficient light distribution. The lamp has a G10Q pin base for use with matching small drum style ceiling fixtures and magnifier lamps. With a beam spread of 135 degrees and a temperature of 6500 kelvins, this circular lamp delivers 50,000 hours of daylight.
- MOL: 12.00 inches, MOD: 12.00 inches
- Superior 80 CRI light quality, 1760 lumens, 6500K daylight, with a 135 degree beam spread
- Rated for enclosed fixtures
- Damp location rated
- 16 watt LED replaces 32 watt fluorescent
- Frost finished circline plastic bulb with white housing
- LED energy efficient fixture
- 5 Year Limited Warranty
-
GENERAL EA Height 12 EA Width 12 EA Length 1.5 Lamp Filament LED Style Utility CCT Selectable No Wattage Selectable No Finish Family White Additional Info Replaces 32W fluorescent Circlines Amps 0.133-0.058A Has Camera No IOT Enabled No Operating Position Universal Power Factor 0.9 SDS Class LED_Lamp Product Technology LED Incandescent Equivalent 100W -
ELECTRICAL CCT (Kelvin Temp) 6500K Dimmable Non-Dimmable Hours Rated 50000 Beam Angle (Degree) 135 Temperature Daylight CRI 80+ Operating Frequency 50/60Hz Operating Temp -13F to +113F (-25C to +45C) Lumens 1760L Volts 120V-277V Watts 16W PHYSICAL Lamp Base G10q (4-Pin) Finish Frost Housing Color White ANSI Base G10q Lamp Type T9 MOD Lamps 1.13 MOL 11.75 Warranty 5-Years Installation Notes Not for use in vapor tight fixtures. Rated For Enclosed Fixture Yes -
COMPLIANCE FCC Compliant Yes Location Rating Damp ROHS Compliant Yes Safety Listing cETLus - Classified DLC Approved No Title 20 Exempt T24/JA8 Compliant No
