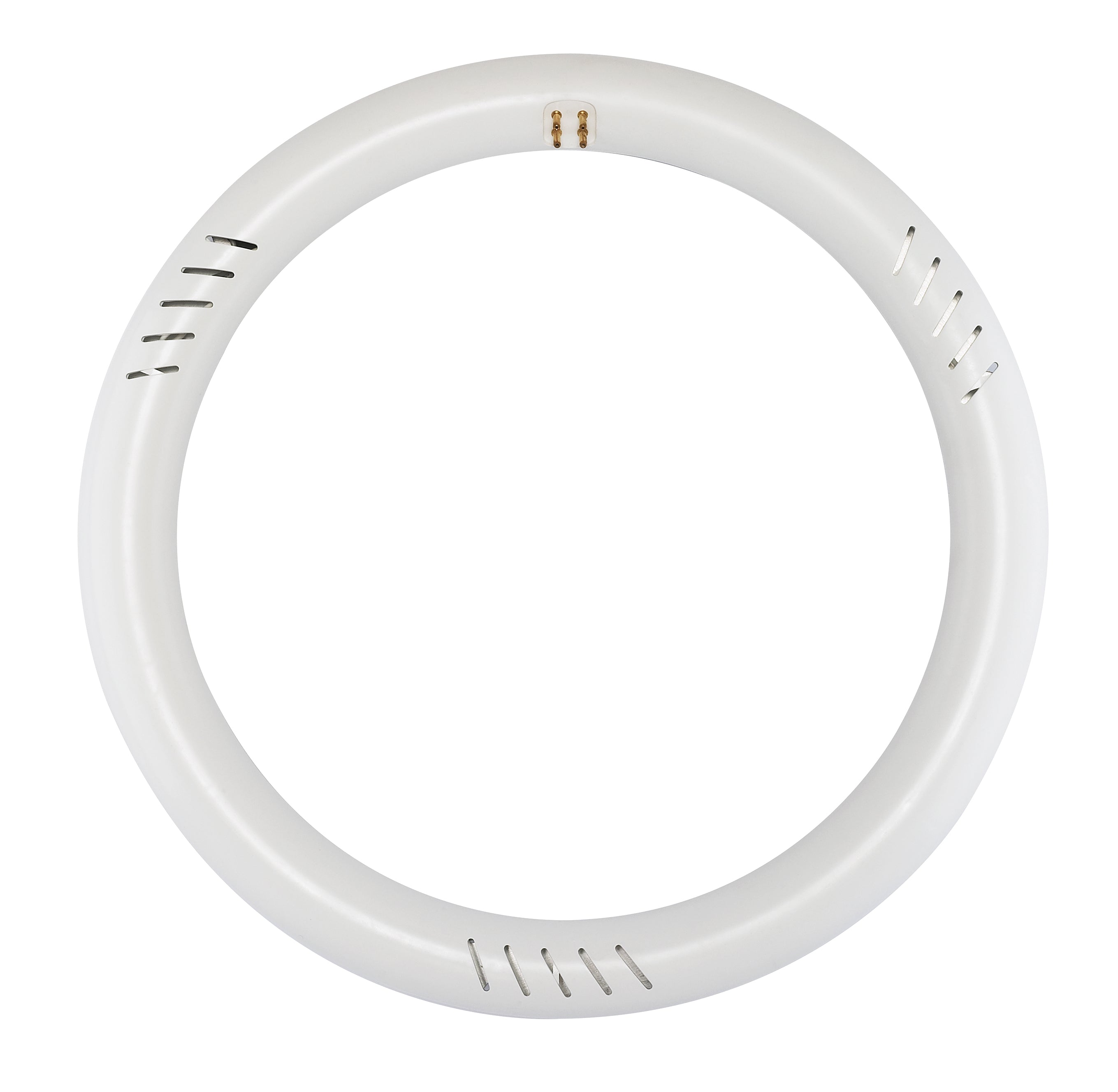

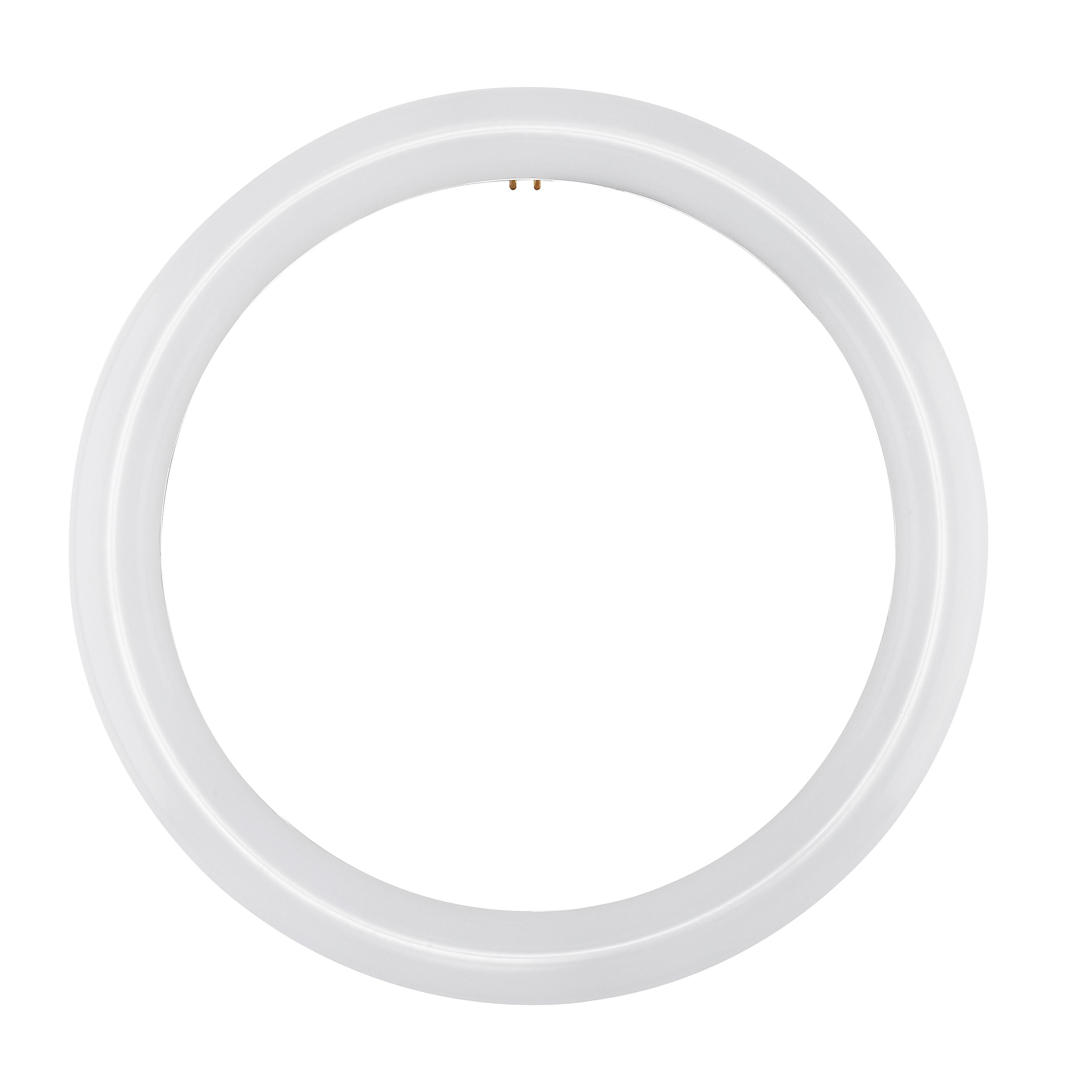

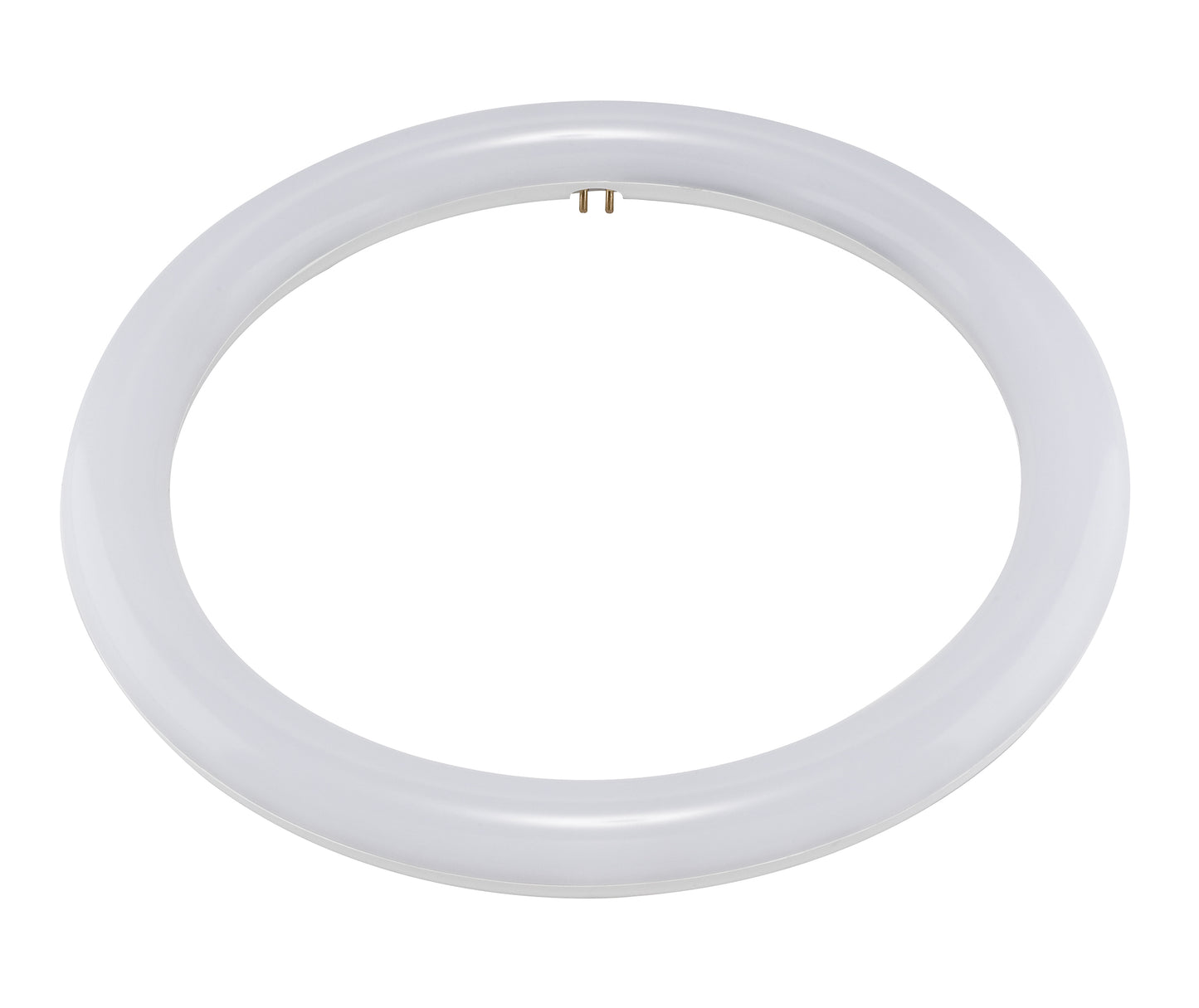

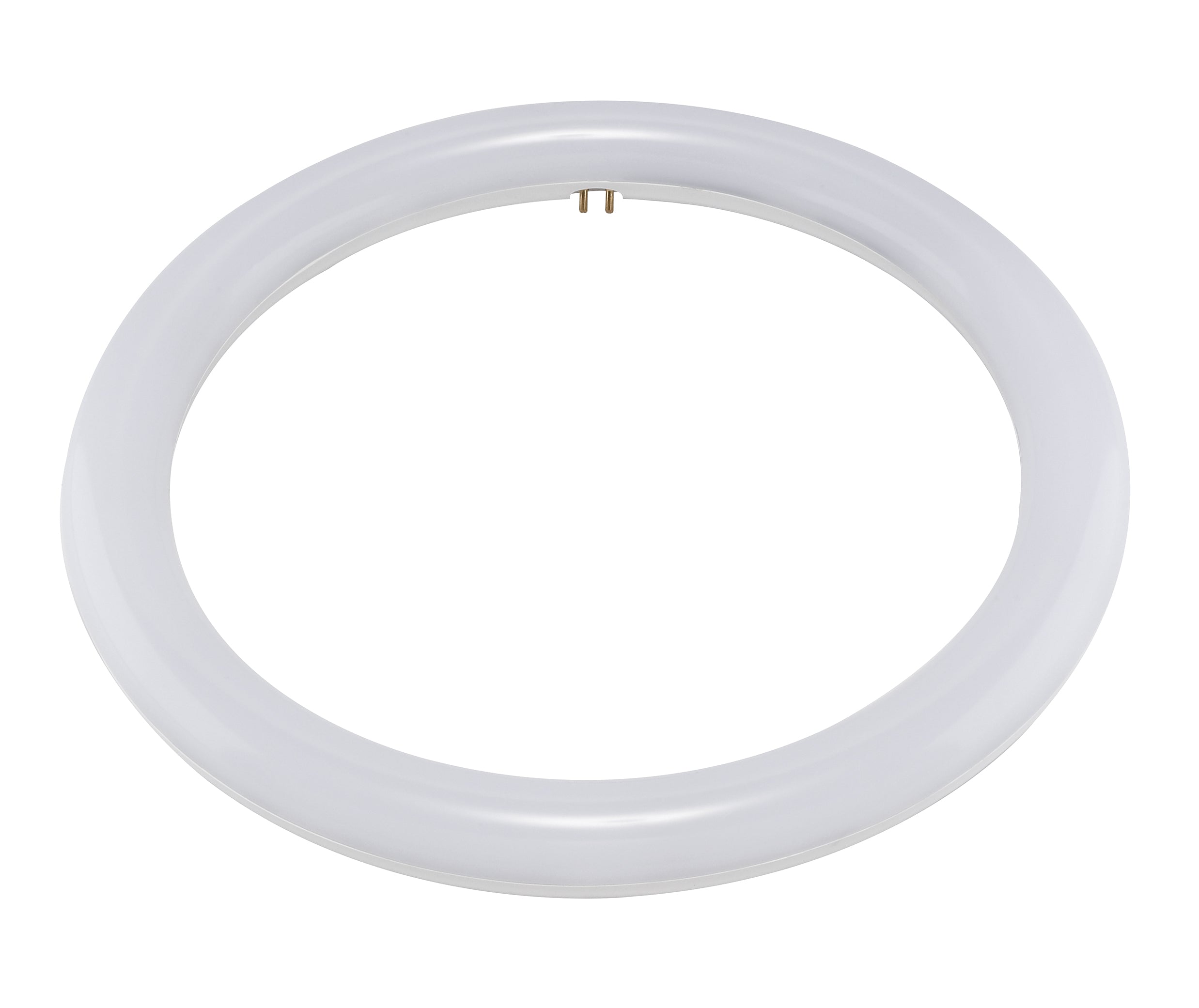

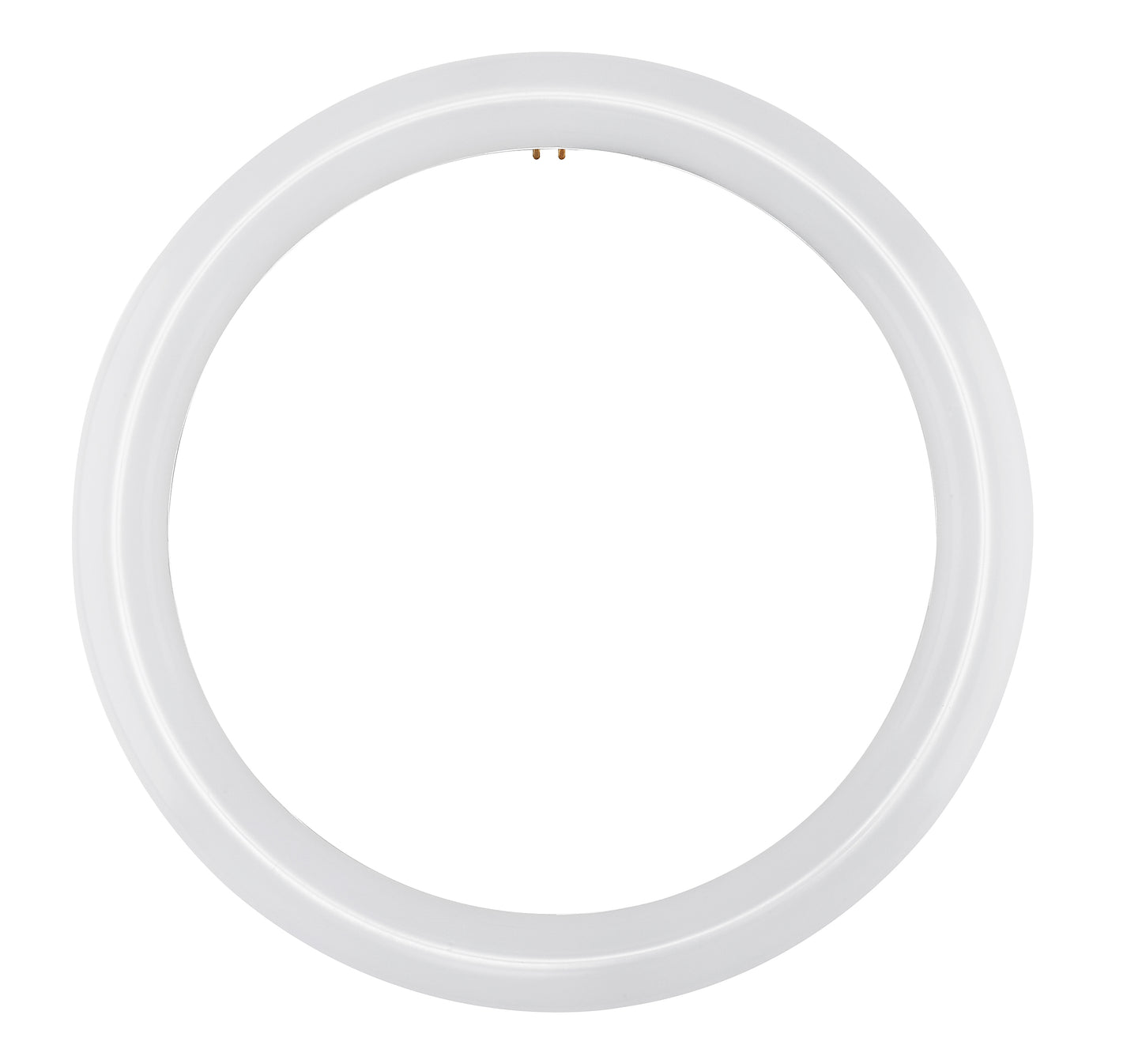

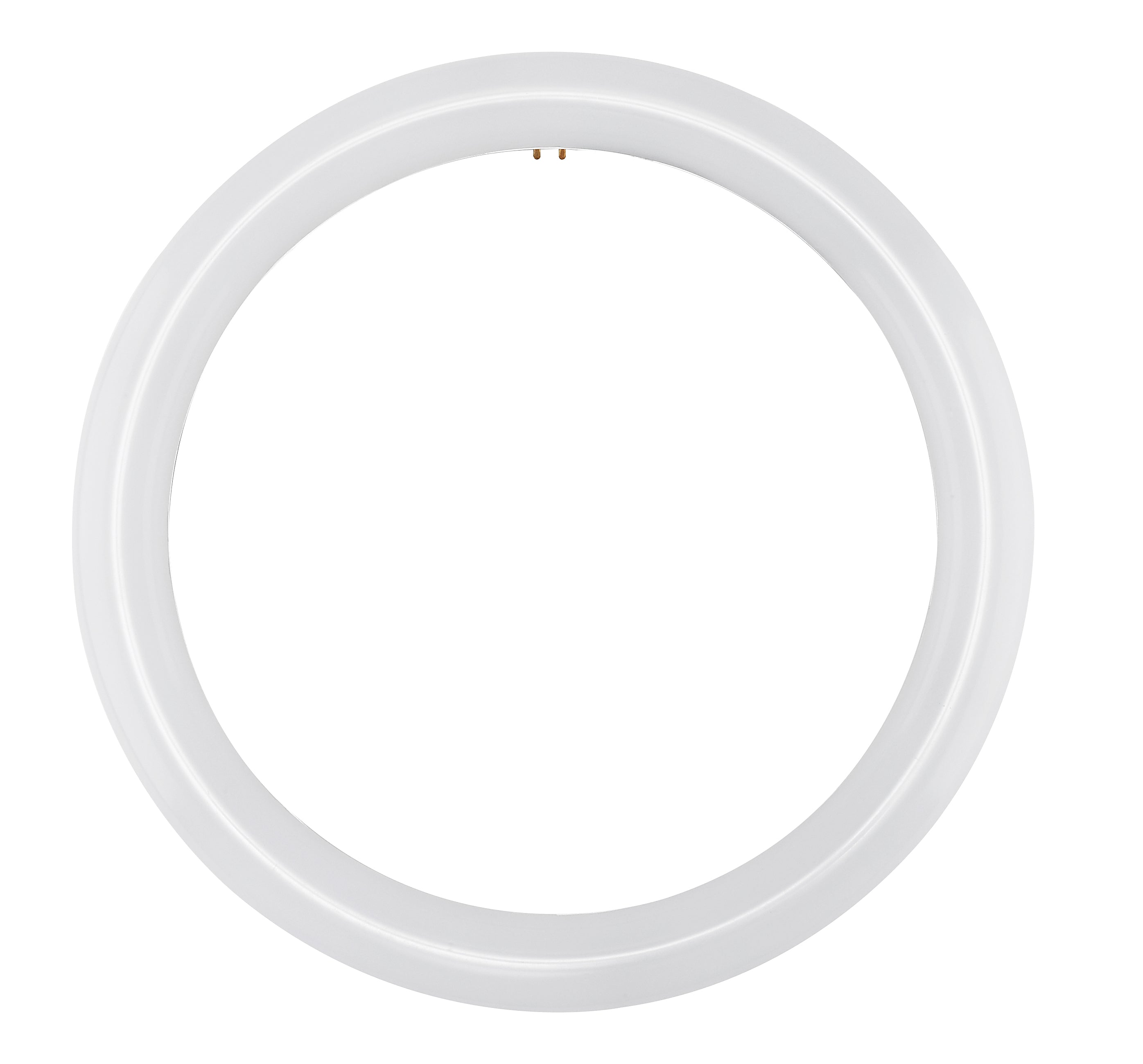

LED Circline; 16 Watt; T9; 3000K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass
LED Circline; 16 Watt; T9; 3000K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass
Regular price
Clearance Price $6.29
Regular price
Distributor Net :
$11.21
Sale price
Clearance Price : $6.29
Unit price
/
per
Total Available Inventory: 2780
Couldn't load pickup availability
SKU: S16503
Product Description
Satco's S16503 T9 16 watt LED circline Type B ballast bypass lamp provides even, energy efficient light distribution. The lamp has a G10Q pin base for use with matching small drum style ceiling fixtures and magnifier lamps. With a beam spread of 135 degrees and a temperature of 3000 kelvins, this circular lamp delivers 50,000 hours of warm white light.
-
GENERAL EA Height 12 EA Width 12 EA Length 1.5 Lamp Filament LED Lamp Ballast Type Ab Type B Ballasting Requirements Ballast Bypass Fixture Type Circline Status Name Discontinued Style Utility Most Current Generation S16511 Surge Protection Built-in-surge protection - 0.5KV CCT Selectable No Wattage Selectable No Finish Family White Additional Info Replaces 32W fluorescent Circlines Amps 0.133-0.058A Has Camera No IOT Enabled No Lens Finish Frost Lensed Lensed Lamp Nominal Length 12 Power Factor 0.9 SDS Class LED_Lamp Technology LED Fluor Equiv 32W Incand Equiv 100W -
ELECTRICAL Temperature 3000K Dimmable Non-Dimmable Hours Rated 50000 Volts 120V-277V Watts 16W Color Temp Warm White Lumens 1600L CRI 80+ Beam Spread 135 Operating Frequency 50/60Hz Operating Temp -25C (-13F) to +45C (+113F) PHYSICAL Lamp Type T9 Finish Frost Housing Color White ANSI Base G10q Lamp Base G10q (4-Pin) MOD Lamps 1.13 MOL 11.75 Installation Notes Not for use in vapor tight fixtures. -
COMPLIANCE Safety Listing cETLus - Classified Location Rating Damp DLC Approved No BAA Compliant No NOM Certificate NTEEL21007402-SOL NOM Expiration Date 12/29/21 Enclosure Rating Enclosed Rated Lamp Rated For Enclosed Fixture Yes FCC Compliant Yes RoHS Compliant Yes Title 20 Exempt
