LED Circline; 11 Watt; T9; 6500K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass
LED Circline; 11 Watt; T9; 6500K; G10Q Base; 120-277 Volt; Type B; Ballast Bypass
Regular price
Clearance Price $5.77
Regular price
Distributor Net :
$10.19
Sale price
Clearance Price : $5.77
Unit price
/
per
Total Available Inventory: 328
Couldn't load pickup availability
SKU: S16502
Product Description

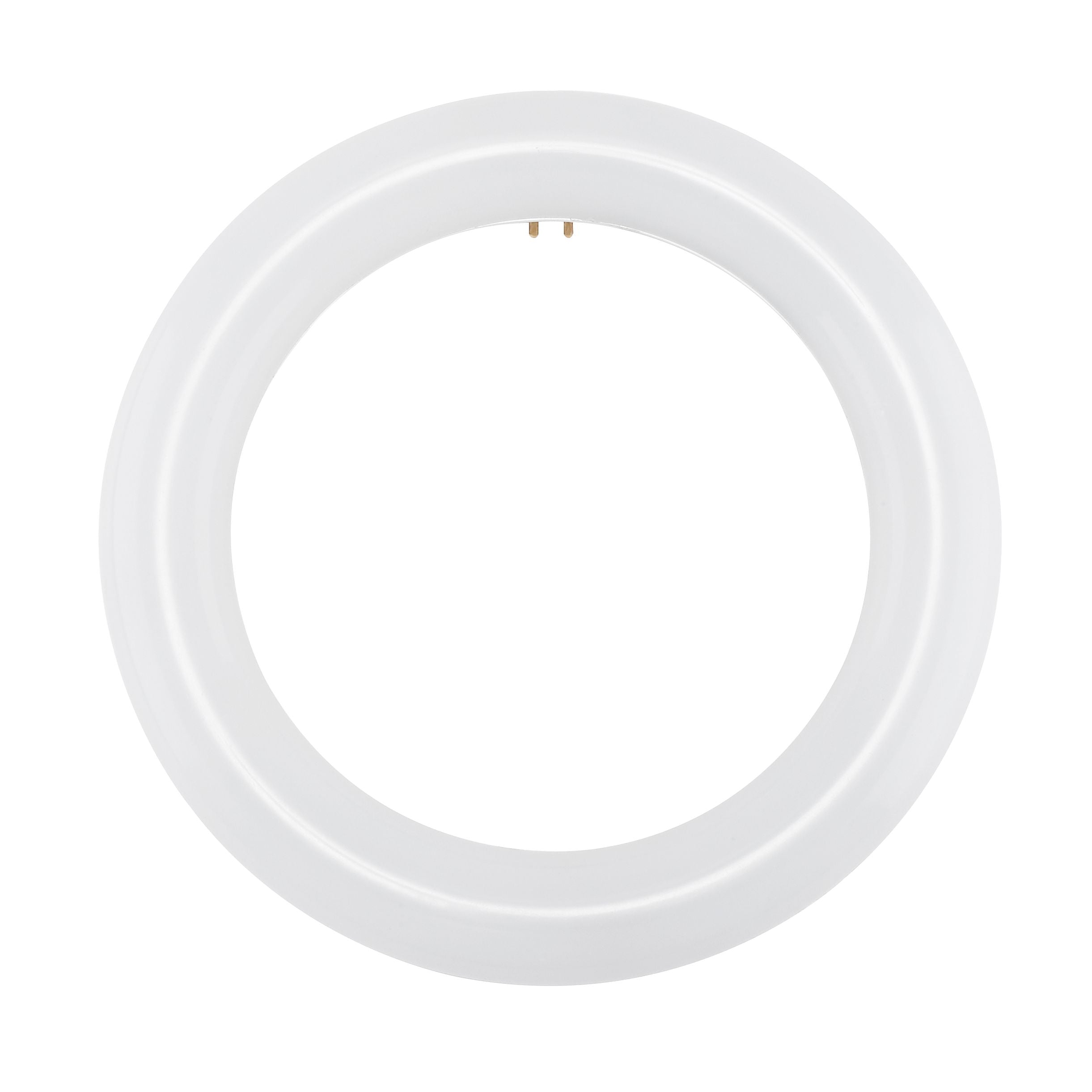

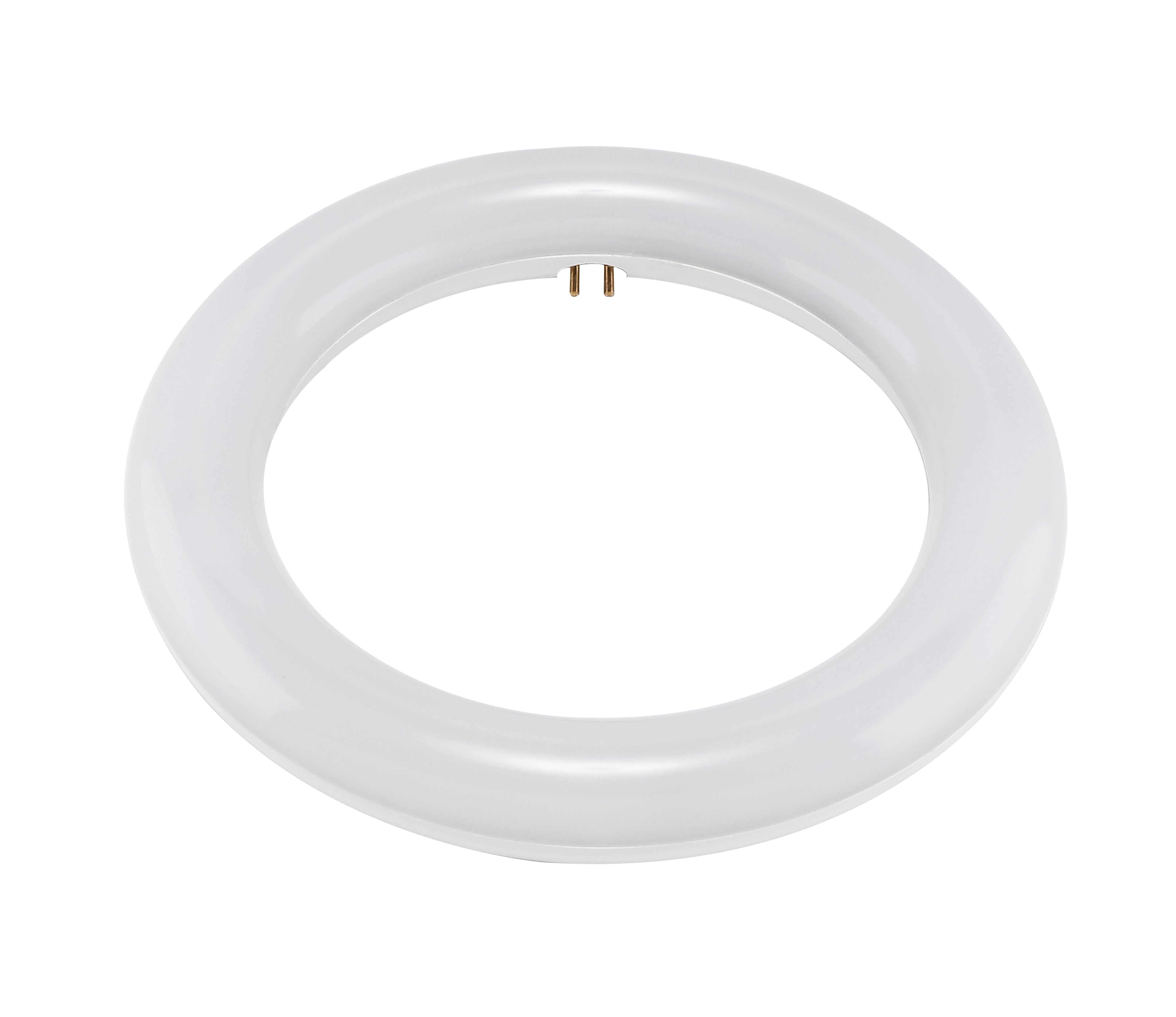

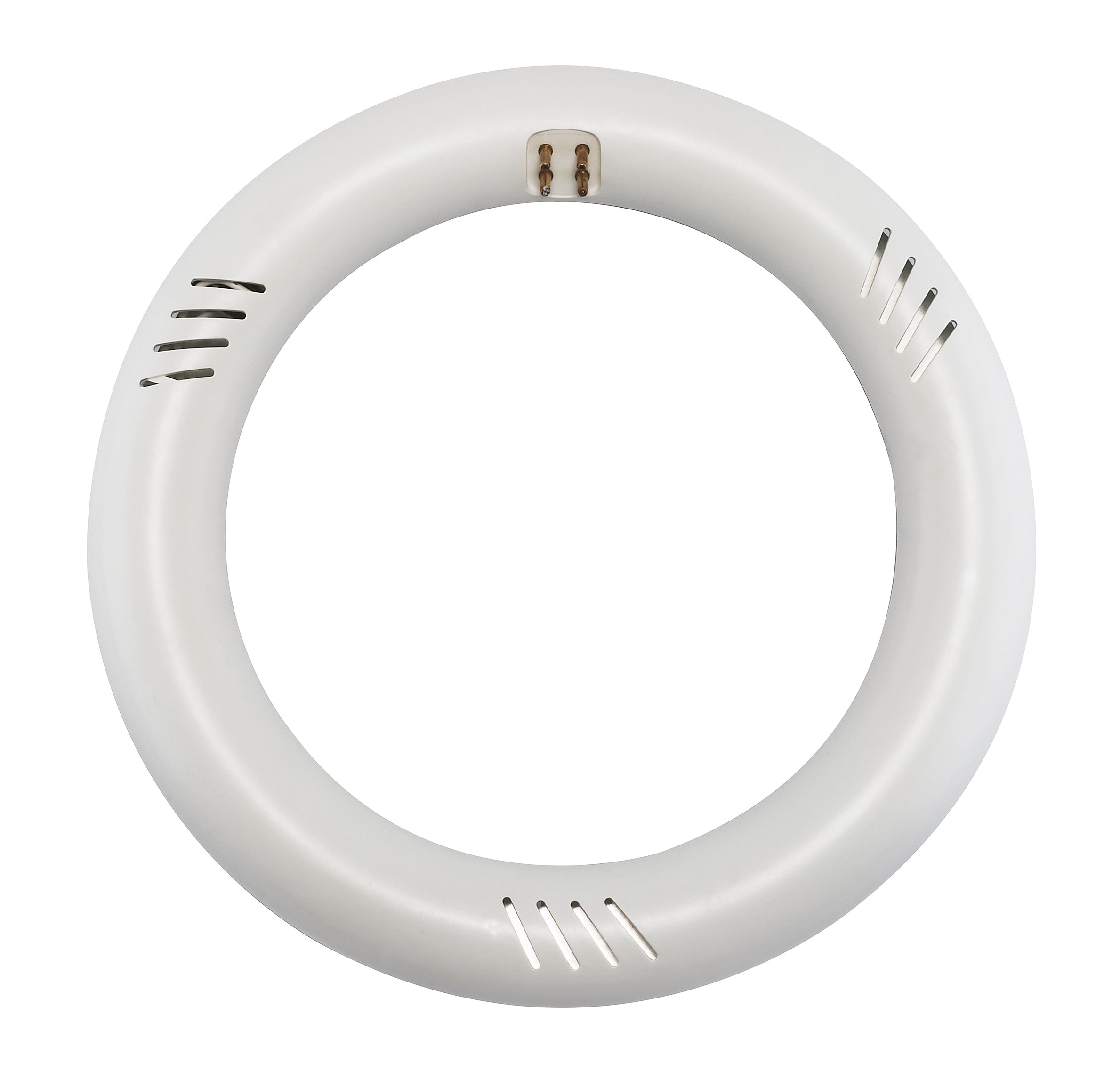

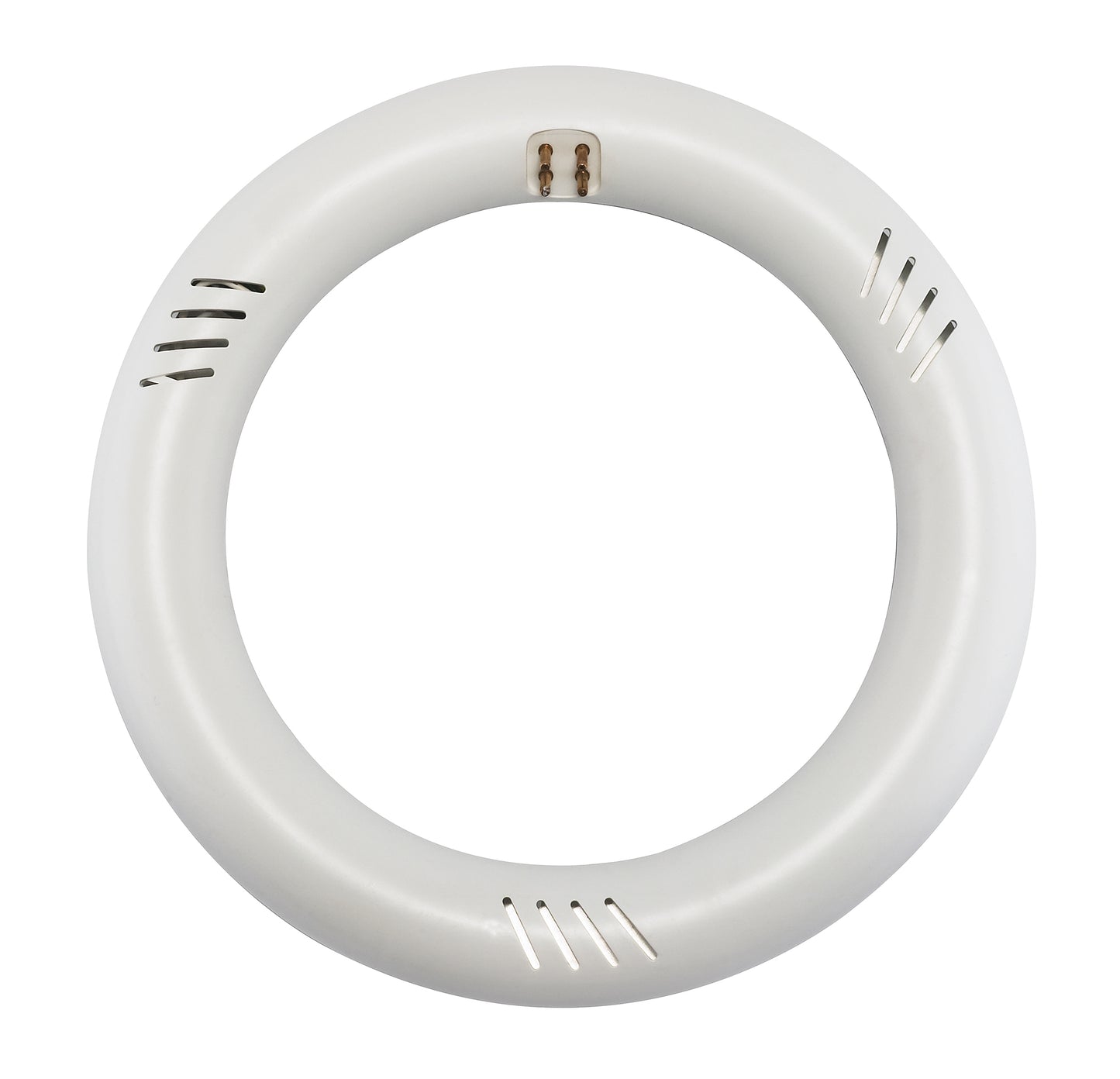

Satco's S16502 11 watt T9 LED circline Type B ballast bypass lamp provides even, energy efficient light distribution. The lamp has a G10Q pin base for use with matching small drum style ceiling fixtures and magnifier lamps. With a beam spread of 135 degrees and a temperature of 6500 kelvins, this circular lamp delivers 50,000 hours of daylight.
-
GENERAL EA Height 8.25 EA Width 8.25 EA Length 1.38 Lamp Filament LED Material Aluminum / Plastic Lamp Ballast Type Ab Type B Ballasting Requirements Ballast Bypass Fixture Type Circline Status Name Discontinued Style Contemporary Most Current Generation S16510 Surge Protection Built-in-surge protection - 0.5KV CCT Selectable No Wattage Selectable No Finish Family White Additional Info Replaces 22W fluorescent Circlines Amps 0.092-0.040A Has Camera No IOT Enabled No Lens Finish Frost Lensed Lensed Lamp Nominal Length 8 Power Factor 0.9 SDS Class LED_Lamp Technology LED Fluor Equiv 22W Incand Equiv 50W -
ELECTRICAL Temperature 6500K Dimmable Non-Dimmable Hours Rated 50000 Volts 120V-277V Watts 11W Color Temp Daylight Lumens 1210L CRI 80+ Beam Spread 135 Operating Frequency 50/60Hz Operating Temp -25C (-13F) to +45C (+113F) PHYSICAL Lamp Type T9 Finish Frost Housing Color White ANSI Base G10q Lamp Base G10q (4-Pin) MOD Lamps 1.13 MOL 8 Installation Notes Not for use in vapor tight fixtures. -
COMPLIANCE Safety Listing cETLus - Classified Location Rating Damp DLC Approved No BAA Compliant No NOM Certificate NTEEL21007402-SOL NOM Expiration Date 12/29/21 Enclosure Rating Enclosed Rated Lamp Rated For Enclosed Fixture Yes FCC Compliant Yes RoHS Compliant Yes Title 20 Exempt
